Terrain Partition

Top  Previous  Next



Select "Data Preparation->Terrain Partition". Specify the parameters and the output file.

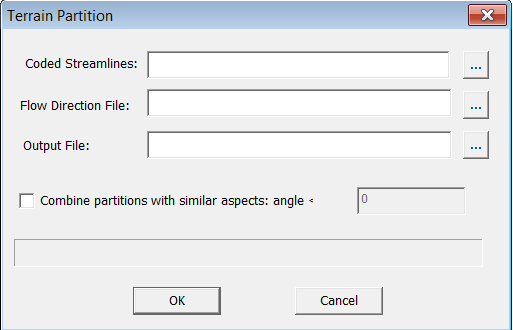

DataPreparation_TerrainPartitionDlg



Output: Terrain Partition



Divide the terrain into slope partitions.



Coded Streamlines



The streamlines data of the area, which can be generated by "Streamline" modular in "Data Preparation".



Flow Direction File



The flow direction data generated by "Flow Direction" modular in "Data Preparation".



Combine partitions with similar aspect: angle <



If the difference between the two partitions is less than the value, combine them.
